Options for Updating Solstice Pods to the Latest Software Version




Introduction

There are several ways that Pods can access software updates, each with different advantages and steps to complete the update process. This guide provides an overview of each method as well as step-by-step instructions for Solstice administrators.

Solstice Pod Update Options

The following are the available methods for updating Solstice Pods:

  • Standard Over-The-Air (OTA) recommended, default method. The Pod’s default update method reaches out to the Mersive web server to access updates. To use this method, Pods must have direct internet access. This method can be configured via Dashboard or a Pod’s local/web configuration panel.
    How to update Pods using Standard OTA method
  • OTA via Web ProxyThis method can be used when Pods have internet access via web proxy. Pods will still receive OTA updates from the Mersive web server, but the Pod must have the proper web proxy settings configured to do so. This method is useful if the network requires Pods to be behind a firewall and can be configured via Dashboard or a Pod’s local/web configuration panel.
    How to update Pods using OTA via Web Proxy method
  • Local OTA – The Local OTA method can be used when Pods don’t have direct or web proxy-based access to the Mersive web server for updates. This method requires you to download the Solstice upgrade file, place it on a local web server, and configure Pods to point to that location for updates via the Solstice Dashboard. This is only available for Enterprise Edition Pods version 3.5 or later and can only be configured using Dashboard version 3.5 or later.
    How to update Pods using Local OTA method
  • Solstice Local Release (SLR) – This method should only be used when Pods can’t receive OTA updates due to not having access to the Mersive web server or a local web server for updates. This method uses a local file downloaded to the Solstice Dashboard machine for upgrades and is only available for Enterprise Edition Pods using the Dashboard.
    How to update Pods using SLR method

How to update Pods using Standard OTA method

This method can be configured using the Dashboard or a Pod’s local/web configuration panel.

  1. Ensure the Pod is connected to the internet via ethernet cable or attaching it to an existing wireless network.

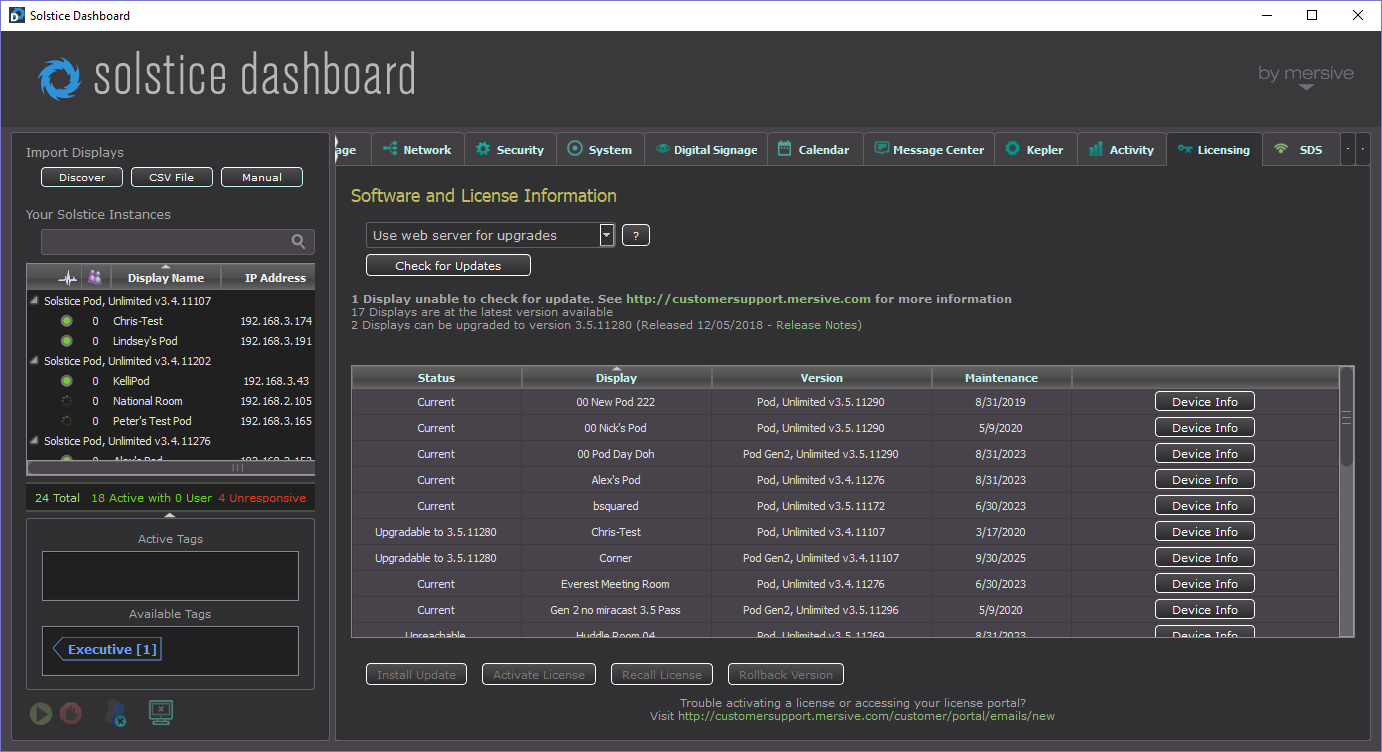

  2. Go to the Licensing tab of the Solstice Dashboard or Pod’s local/web configuration panel.
  3. Under Software and License Information, select Use web server for upgrades from the drop-down. By default, the Mersive web server is used.
  4. Click the Check for Updates button. The software will check for updates.
  5. If an update is available, select the Pods you wish to update, then click Install Update.

How to update Pods using OTA via Web Proxy method

This method can be configured using the Dashboard or a Pod’s local/web configuration panel.

  1. Ensure the Pod is connected to the internet via ethernet cable or attaching it to an existing wireless network.
  2. Go to the Licensing tab of the Solstice Dashboard or Pod’s local/web configuration panel.
  3. Under Software and License Information, select Use web server for upgrades from the drop-down. By default, the Mersive web server is used.
  4. Go to the Network tab > Web Server Proxy section.
  5. Enable one or both of the web proxy settings.
  6. Enter in the required web proxy details. To verify, click Test Proxy Settings.
  7. Click Apply.
  8. Go to the Licensing tab and click the Check for Updates button. The software will check for updates.
  9. If an update is available, select the Pods you wish to update, then click Install Update.

How to update Pods using Local OTA method

This method can only be configured for Enterprise Edition Pods version 3.5 or later using the Dashboard.

  1. Download the upgrade files and place them on your local web server. These files are currently provided by Mersive support.
  2. Ensure the Pod is connected to a network with access to your local web server.
  3. Go to the Licensing tab of the Solstice Dashboard.
  4. Under Software and License Information, select Use web server for upgrades from the drop-down.
  5. Go to the Network tab > Local Web Server section.
  6. Select Use local web server for updates.
  7. In the field below, enter the location of the upgrade files on your local web server. NOTE: You only need to do this initial configuration once. For future updates, you will only need to place the most current upgrade files in this location.
  8. Click Apply.
  9. Go to the Licensing tab and click the Check for Updates button. The software will check for updates.
  10. If an update is available, select the Pods you wish to update, then click Install Update.

How to update Pods using SLR method

This method can only be configured for Enterprise Edition Pods using the Dashboard.

  1. Download the Solstice Local Release (.slr) file on mersive.com/download.
  2. Go to the Licensing tab of the Solstice Dashboard.
  3. Under Software and License Information, select Use local file for upgrades from the drop-down.
  4. Click the Load Local Update File button, then browse to and select the .slr file.
  5. Click Open.
  6. Once the file is loaded, select the Pods you wish to update, then click Install Update.

Other Considerations

  • Solstice Windows Display Software instances can only be updated by logging into the Mersive Download Center (mersive.com/downloads) and downloading the latest software update onto the Windows host PC and running the installer.
  • Current software maintenance is required to update Solstice Pods and Windows Display Software instances to the latest version. To learn more, visit mersive.com/solstice-maintenance.
